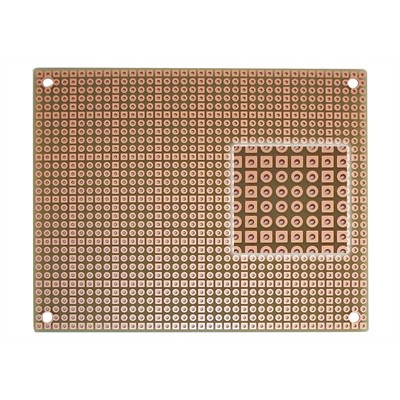

CIRCUIT-TEST Padboard - 2 , 80x100mm
CIRCUIT-TEST Padboard - 2 , 80x100mm
Product code : PAD2
10.15 $
Contact us for delivery time
RP Electronics
Sherbrooke, QC
0
Lévis, QC
0
Circuit-Test Electronics
Canada
16
Sold by Unit
Description
Pad-per-hole prototyping board with plated-thru holes. Double-sided high-quality FR4 glass-epoxy circuit board with plated holes. Components can be soldered to either side.
Features
Pad-per-hole prototyping board with plated-thru holes.
Double-sided high-quality FR4 glass-epoxy circuit board with plated holes. Components can be soldered to either side.
A square pad every 5th hole makes it easy to align components on top and bottom.
1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
31 x 39 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers. Four 0.125” mounting holes.
Size 2 = 100 x 80mm (3.94 x 3.15in), 1/16" thick (1.6mm)
Additional information
Other features
Brand
CIRCUIT-TEST
Approval
RoHS compliant
