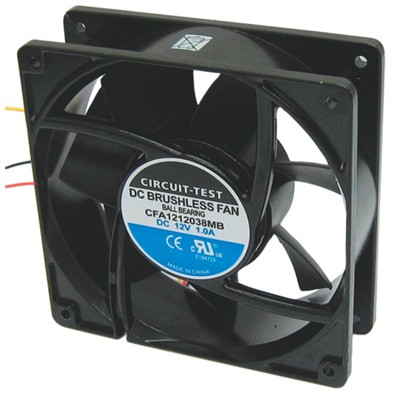

CIRCUIT-TEST Fan 120 x 38mm, 12VDC, Plastic Impeller / Metal Frame, Ball Bearing
Description
Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning ag
Features
Dimensions: 120 x 120 x 38mm (4.7 x 4.7 x 1.5")
Mounting Center: 104.8mm (4.13")
Rating: 12VDC
Current: 1 Amp
Power: 12 W
Bearing: Ball
Speed: 2400 RPM
Noise: 46 dBA
Max Air: 121 CFM
Max Pressure: 5.6 mmH2O
Temperature: -30 to +75 C
Hours: 35000-50000
Termination: Wire leads
Weight: 420g
Impeller: Glass fibre reinforced plastic 94V-0
Frame: Die-cast aluminum
Additional information
Other features
Volts
DC, 12 V
Brand
CIRCUIT-TEST
Size
120mm x 120mm x 38mm ( 4.70'' x 4.70'' x 1.50'' )
Fan Blade (Impeller)
Plastic
Approval
RoHS compliant, cURus
